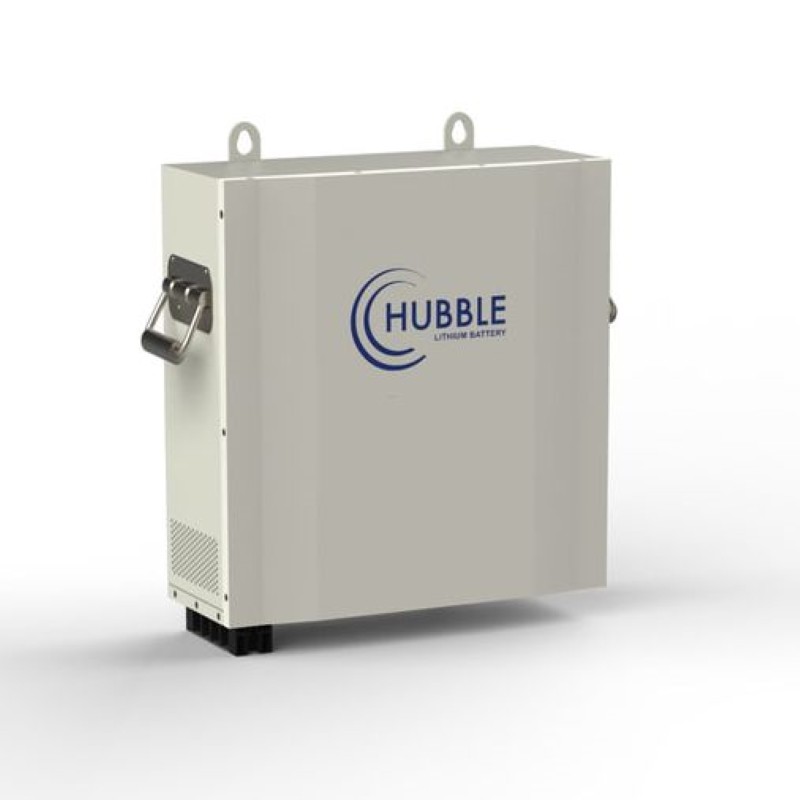

The Hubble AM-2 is the new 5.5KWh 51V Lithium pack designed to be easily wall mounted or shelf installed in a standard rack.
The Hubble AM-2 Lithium-Ion Battery – (51V 5.5kWh) has the following unique features:
- Advanced BMS with current limiting function
- CAN Bus, fully integrates and communicates with leading inverter brands
- Excellent high temperature performance
- High Cycle Life and Service Life
- RIOT integration ready for cloud monitoring
- 1C High Performance Lithium Battery
- High Energy Density and conversion efficiency
- Complete with integrated Battery Management System
- Compatible with most Inverters and chargers
- Low self discharge
- Easy wall mount or shelf rack installation (Have a look at the Energy Independence 5kVa 5.5kWh Compact Power Station)
- Heavy duty handles for easy handling
- Built in protection for over-charge, over-discharge and over-temperature
Hubble AM-2 Lithium-Ion Battery – 51V (5.5kWh) Inverter integration:
The Hubble range of Lithium batteries integrates with a wide range of inverters through CAN bus, alternatively Hubble batteries can be used without comms if your inverter supports settings by voltage.
Hubble AM-2 Lithium-Ion Battery – 51V (5.5kWh) warranty:
The battery has a 15 year intended design life, however Hubble Lithium (Pty) Ltd warranty’s that the battery cells should achieve at least 10 years service life or deliver at least 3000 charge, discharge cycles as counted by the BMS, which ever is achieved first
Specification: 51V 5.5KWh
Rating: 1C
Parallel: up to 15 units per string
Extras: Battery Link & DC cables included
Internal Fire Suppression System: Yes
CAN Bus: Yes
Hubble Cloudlink Ready: Yes
Hubble AM-2 Lithium-Ion Battery Technical Sheet
Hubble AM-2 Lithium-Ion Battery User Manual
Model: Hubble AM2
C Rating: 1C
Voltage: 51.0V
Rated Capacity (5HR): 110Ah
Discharge Cut-off Voltage: 42V
Max Continuous charging current: 100A
Display: None
Dimensions (mm): (W X D X H) – 375 x 145 x 467
Weight: 42
Parallel: Up to 15 packs with full communication
Design Life: ± 15 years
Cycle Life @ 1C: ± 3000 cycles @ 100% DOD, ± 6000 cycles at 50% DOD
Protection: Electronic circuit breaker, BMS Voltage Protection, Current Limiting
- Advanced BMS with current limiting function
- CAN Bus, fully integrates and communicates with leading inverter brands
- Excellent high temperature performance
- High Cycle Life and Service Life
- RIOT integration ready for cloud monitoring
- 1C High Performance Lithium Battery
- High Energy Density and conversion efficiency
- Complete with integrated Battery Management System
- Compatible with most Inverters and chargers
- Low self discharge
- Easy wall mount or shelf rack installation
- Heavy duty handles for easy handling
- Built in protection for over-charge, over-discharge and over-temperature
